EUR 179,95
Overview

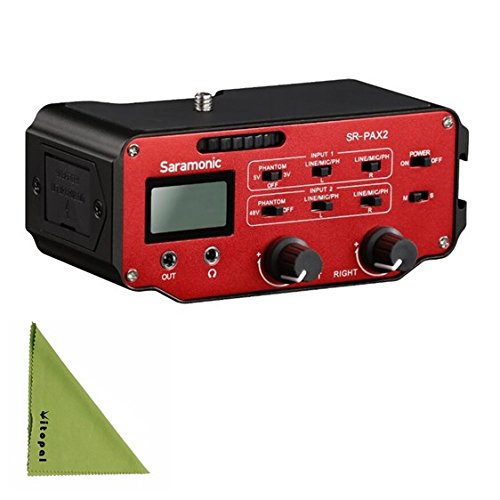

The Saramonic SR-PAX2 is a two-channel audio mixer with pre-amplifier and phantom power designed for mirrorless digital cameras,
Blackmagic Design pocket cinema cameras or DSLR with a microphone jack.
It is a compact and lightweight mixer ideal for recording professional-quality audio from two sources and mixing them into your camera.
It attaches to the base of a camera, and a threaded socket on its base allows for mounting on a tripod or case.
With 2 sets of inputs, the SR-PAX2 accepts signals from various of mic or line level sources such as balanced XLR microphones,
3.5mm microphones, wireless microphones and external audio mixers.
A monitoring jack allows you to monitor the audio in real time. Making your recording work much easier.
Configuration
The SR-PAX2 can work with four microphones for cameras or camcorders.
2 XLR inputs plus two 3.5mm inputs allow the SR-PAX2 to work with two pairs of wireless lavalier microphones like the BOYA BY-WM6 or Saramonic SR-WM4C.
The combination can be used in particular situations like TV talk show, family party, micro film making, academic and business interview & outdoor activities.
Specification
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
THD: less than 0.01% ＠1Khz, -30 dBu input
SNR:80 dB ＠1Khz, -30 dBu input
Input1 phantom Power: 5V/3V power suppliers
Input2 phantom Power: 48V power suppliers
Level meter: -18dB to dB in 3dB increments
Power: 9V alkaline or lithium battery
Battery duration: 5 hours typical lithium battery(no phantom)
3 hours typical lithium battery(with phantom)
Dimension:136*80.5*62.5mm
Weight:13.5 oz(0.385kg)
Package
1*SR-PAX2 main unit
1*Signal transimssion line
1*User manual
1*Warranty card
The SARAMONIC SR-PAX2 is a two-channel active audio mixer with preamplifier and phantom power, specially designed for mirrorless digital camera, Blackmagic Design pocket cinema camera and DSLR camera with a microphone jack.with a microphone jack.
